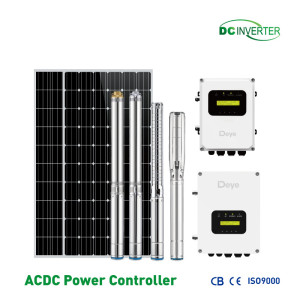

Hybrid AC/DC Solar Water Pump with Automatic Switch, for Industrial Irrigation and Farming
Hybrid AC/DC Solar Water Pump with Automatic Switch, for Industrial Irrigation and Farming
Hybrid AC/DC Solar Water Pump with Automatic Switch, for Industrial Irrigation and Farming
Hybrid AC/DC Solar Water Pump with Automatic Switch, for Industrial Irrigation and Farming
Hybrid AC/DC Solar Water Pump with Automatic Switch, for Industrial Irrigation and Farming
Model
DY-D3600AC/DC

Item specifics

DC Input
108-430V DC
AC Input
100-264V/ 50-60HZ/ 1 Phase
DC Current
<20A
Net Weight
2.4KG
Solar Panel
3-8*500W

Review

Description

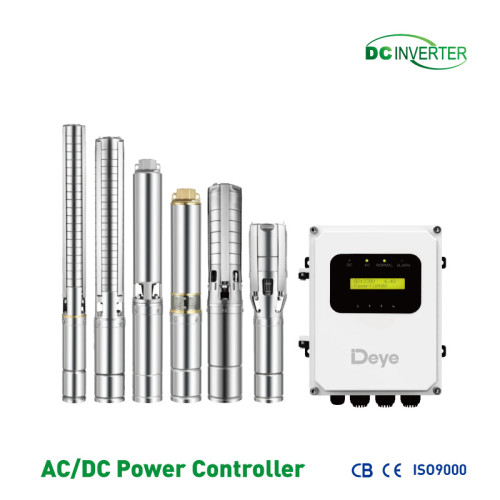

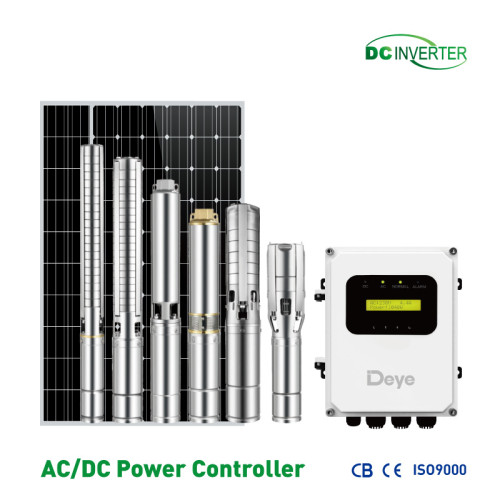

Solar Water Pump

Solar & DC Inverter Pump Technology Leader

As a world-renowned solar inverter brand, Deye incorporates advanced inverter and MPPT technologies into its solar pump controllers, resulting in higher solar energy conversion efficiency. These controllers efficiently convert photovoltaic voltage and current into more stable outputs suitable for Deye solar water pumps. With features such as automatic DC/AC switching, soft start, and overvoltage/overcurrent protection, the entire solar pump system operates more stably, efficiently, and energy-efficiently. Therefore, Deye solar pump controllers are widely used for connecting and controlling various types of solar pumps.

DC solar pump factory
Solarker Deye AC/DC Solar Water Pump Features
Technical Characteristics
Working Environment and Wiring Diagram
The advantages of Solarker AC/DC solar pump controller
DC solar pump inverter

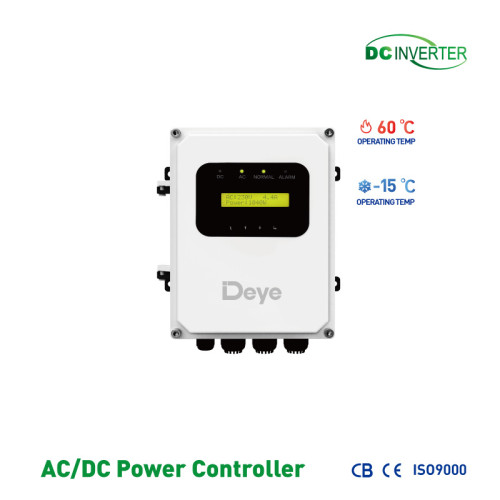

AC/DC Controller
1/ Waterproof grade: IP65
2/ Ambient temperature: -15℃~60℃
3/ Working environment humidity: 30% -90%
4/ Maximum input current: 18A
5/ Liquid Crystal Display(LCD): displays the power, voltage, current, speed and other          working condition,enhanced user convenience and experience.
6/ Permanent Magnet Synchronous Motor: Position-free on field-oriented control
7/ Efficient Energy Management: Including MPPT technology to maximize solar energy usage and minimize energy waster.
8/ Intelligent Protection On Motor Drive : Adopts innovative intelligent protection    technology to ensure the motor never burn, and providing higher operatinal safety.
9/ Comprehensive Protections: Includes protection of over-voltage, under-voltage, over-current, phase loss, water shortage,short circuit, high temperature...
10/ Error Code Memory: Error reporting, storing fault code history, simplifying troubleshooting.
AC/DC Controller Specifications(1100-3000W)

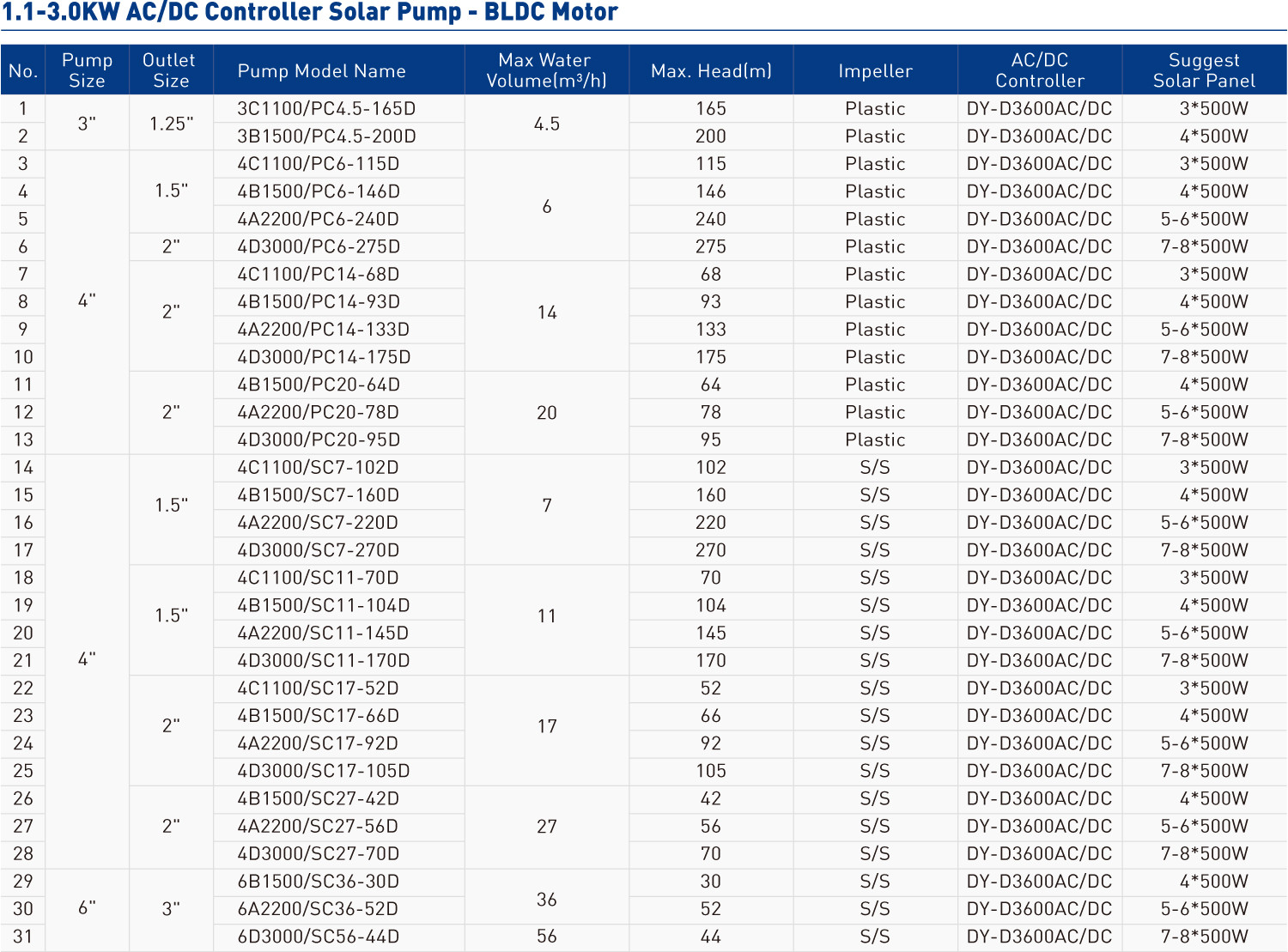

Solar Submersible Water Pump Specs
Projects of Solarker Solar Pump
solar pump installation
solar pump installation in Thailand
solar pump installation in brazil
solar pump installation of solar panel
