Item specifics

Rated Cooling Capacity
12000(3000-12600) BTU
Rated Cooling Power Input
940(190-1050) W
Rated Heating Capacity
3650(900-3800) W
Grid AC Power
Solar DC Power Vom
80-380V DC(By Solar Panel)
DC Inverter Compressor
Highly Twin Rotary DC Inverter
MPPT Solar Controller
Working Temperature
-10 to 58℃ (T3 Tropical)

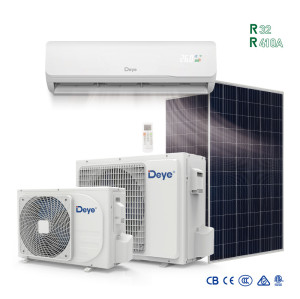

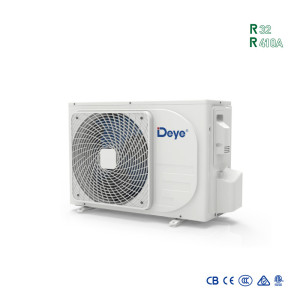

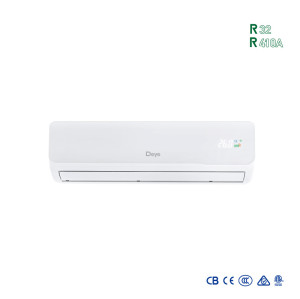

Solarker Hybrid AC/DC Solar Air ConditionerSK2-ACDC-12K

Solarker Solar Powered Air Conditioner 120/240V use full DC inverter compressor, full DC motors, utilizes the unstable DC power generated by photovoltaic panels, does not need inverter conversion, does not need batteries or AC grid power stand by to balance, and directly supplies DC power to the compressor and motor, using VRF frequency conversion Technology, the operating frequency of the compressor and DC motor varies according to the solar panel output DC power to achieve a stable operation state.

115V solar air conditioner 12000btu
solar air conditioner 12000btu
solar air conditioner for USA
split phase solar air conditioner USA
About Installation

Hybrid AC/DC Solar AC uses a built-in MPPT booster controller, which is very easy to install. Install the indoor unit and outdoor unit just like ordinary air-conditioning installations, connect to the grid power through L/N terminal or solar panel DC power through MC4 connectors from the outdoor unit, and the air-conditioning can work normally.
USA hybrid solar air conditioner
How does Solarker Hybrid ACDC solar air conditioner works
Solarker Hybrid AC/DC solar air conditioner does not require batteries or solar inverters. Under normal daylight conditions, the DC inverter compressor is directly driven by the solar DC power generated by 3-8 solar panels to cool or heat according to the set temperature. At night or in rainy days, when the solar light is insufficient, the air conditioner will automatically calculate and obtain insufficient electricity from the grid power to work, automatically balance the grid AC and solar DC electricity, and make the system run stably throughout the day.

Differences between Solarker Hybrid AC/DC solar air conditioners and ordinary air conditioners
1. Hybrid AC/DC solar air conditioner must use DC Inverter Compressor and BLDC motor
2.  Hybrid AC/DC solar air conditioners use the twin rotary inverter compressor to ensure that the noise and vibration of the external machine are small and the energy efficiency is excellent.
3. Hybrid AC/DC solar air conditioner get smaller starting current: 1-3A, wider voltage operating range: AC 80-290V
4. Hybrid AC/DC solar air conditioners use EEV to precisely control refrigerant flow, high efficiency and energy saving
5. The solar MPPT module electronic control board must be connected to the compressor and motor and communicate
6. Improved PV DC safety protection
7. Improved fault code warning and after-sales service code for easier service
8. Both Grid AC power and Solar DC power need to be powered from the outdoor unit
9. Statistical data display of solar DC solar power and AC grid power consumption(Solarker get from the mob APP)
10. Even if it is not connected to solar panel, it is only necessary to achieve ultra-high energy efficiency in the Grid AC mode to achieve the greatest energy saving purpose
11. Only solar power in day time the unit works stable without grid power
solar air conditioner installation in USA
Structure of Solarker Hybrid ACDC solar air conditioner
solar acdc solar air conditioner heat pump
Installation of Solarker Hybrid ACDC solar air conditioner
What are included in the Solarker solar air conditioner packages
120V solar air conditioner supplier
Packing List
Air Conditioner Indoor Unit
Air Conditioner outdoor Unit
Remote Controller
Remote Controller Holder
AAA Battery
In&Out Connecting Wire
Installtion Instructions
Wall Screws
Connecting Copper Pipe
No. 10
Indoor Unit Hanger
No. 11
Pipe Paking Belt
Drain Pipe
Pipe Jacket
Mc4 Connector
Model Name Unit SK2-ACDC-12K (US 120V)
Application Area m2 15-25
Grid AC Power Type / 120V /60HZ
Solar DC Power VOM Vdc 80-380
Solar DC Power VOC Vdc <=380V
DC Power Current IOC A <=12A
Suggest Solar Panel Pcs 3*450W
Rated Cooling Capacity W 3510(900-3700)
Rated Cooling Capacity Btu 12000(3000-12600)
Rated Cooling Power Input W 940(190-1050)
Rated Heating Capacity W 3650(900-3800)
Rated Heating Power Input W 1050(190-1200)
EER W/W&BTU/W 3.73/12.76
Compressor / Highly Twin Rotary Inverter
Indoor Fan Motor / BLDC-15W
Indoor unit Dimension mm 840×205×295
Indoor unit Packing mm 920×290×360
Indoor Unit Net/Gross Weight Kg 9.0/12.5
Outdoor Fan Motor / BLDC-40W
Outdoor Unit Dimension mm 802×564×323
Outdoor Unit Packing mm 910×622×405
Outdoor Net/Gross Weight Kg 33.5/37.5
Refrigerant type / R410A
Refrigerant Pipe Size Inch 3/8  1/4
Solar Features
There is many special features of Solarker hybrid ACDC solar powered air conditioner such as: AC/DC solar power meter data from APP, AC power 3 stages limitation, RS485 control, pls check details below:
hybrid solar air conditioner for America

100% Solar Driven-Off Grid Work

Pure solar DC power driven DC compressor and motor in the day without grid or battery backup

American solar air conditioner

Auto Balance AC and DC Power

Always solar DC priority, AC/DC auto balance when cloudy days with grid power stand by

solar air conditoiner for USA

Wide MPPT Voltage

VMP: 80V-380Vdc

VOC: 390Vdc

ISC: 13A(Over 13A no damage)

DC solar air conditoiner heat pump

MPPT High Tracking Efficiency

MPPT tracking efficiency can reach 99.9%

solar air conditioner supplier

High Solar Safety Protection

PV input lightning protection

Residual current monitoring unit

Output over current Protection

Output over voltage Protection

mini split solar ac

Built-In MPPT Solar Controller

The Solar Mppt Booster build inside the outdoor unit with air condtioner outdoor controoler. No need extra solar inverter installation.

solar aircon supplier

MC4 Solar Panel Connector

Outdoor unit with MC4 connector to easily connect solar panel PV+ and PV-

solar aircon in USA

APP Power Monitor

Check solar power data and AC power consumption history data by app anytime anywhere. Easily know how much saving energy everyday.

solar power air conditioner for USA

3 Stage Grid AC Power Limiter

Limit the air conditioner AC power input consumption by 25% 50% 75%
solar powered air conditioner in USA

LED display with DC Solar

Air conditioner indoor unit display light board displays Solar/Grid power working status.

solar air conditioner with solar panel for USA
Auto Restart Next Morning
Air Conditioner will automatically restart itself when the solar return in the morning next day
air conditioner powered by solar panel in USA
RS485 Communication
Air Conditioner indoor unit capable with RS485 communication connector to control the unit.
DC Inverter Air Conditioner Features
solar ac for USA
Twin Rotay DC Inverter Compressor
High Efficiency, low noise level, stable working, longer life design. Powerful Cooling.
solar power air conditioner hybrid
Low Noise DC Motor
DC fan motor, higher efficiency and accurate control
hybrid solar AC
Golden Fin Evaporator and Condenser
Golden Fin is more resistant to oxidation and corrosion than ordinary blue fins of most
hybrid air conditioner by solar panel
WiFi Remote Control
 WIFI connection to the air conditioner and control anywhere and anytime through mobile APP
USA air condiitoner with solar panel
Wide Grid AC Voltage
With DC inverter compressor and the self-developed electronic control system, the air conditioner can be started and operated normally under a voltage between 90 and 250V in order to solve the problem of unstable voltage
solar air conditioner installation in USA
Fault Code Indicate
When the machine operates with problems, display section will show the corresponding fault code to make after -sales service convenient and prompt.
split phase solar air conditioner
Labyrinth PCB Cooling Radiator
Outdoor inverter electric control box uses labyrinth design, and proved by 2H rainstorm simulation test, it won’t get wet even in the typhoon day
solar air conditioning controller USA standard
5VA security controller Box
The highest level of fire-proof materials are adopted to protect the internal electronic control components, and prevent fire due to internal and external factors upon an accident.
hybrid ACDC
Dual Side Water Outlets
The water outlet can be installed on either left or right side of the water tray for your convenience. connector to control the unit.
Air conditioner acdc 12000btu
Environmentally Friendly Refrigerant
R32 or R410A refrigerant can be selected
12000btu solar air conditioner for USA
58℃ Tropical Temperature Working
T3 System, High EER level design, the unit works under 58 degree middle east tropical temperature
12000btu air conditioner solar power
EEV Accurate Refrigerant Control
System with EEV control the flow of refrigerant, reach higher energy efficiency level
